Laser Tube Cutting in Agricultural Machinery Fabrication

The agricultural machinery industry is entering a new era of digitalization, precision, and automation.From tractors and harvesters to sprayers and cultivators, modern agricultural equipment must not only be strong, lightweight, and precise, but also meet global demands for efficiency and sustainability.However, traditional fabrication methods—such as sawing, drilling, and manual welding—can no longer keep up with today’s manufacturing requirements. These outdated techniques often lead to large dimensional errors, low productivity, and high material waste.

Against this backdrop, Laser Tube Cutting in Agricultural Machinery Fabrication has emerged as a revolutionary breakthrough.
>By combining high-precision cutting with automated control, laser tube cutting enables manufacturers to produce complex structural components with greater speed and consistency—significantly enhancing the overall manufacturing quality of agricultural equipment.

Typical Applications of Laser Tube Cutting in Agricultural Machinery

Laser tube cutting can be applied to nearly all structural components of agricultural machinery.
Below are several of the most representative applications:

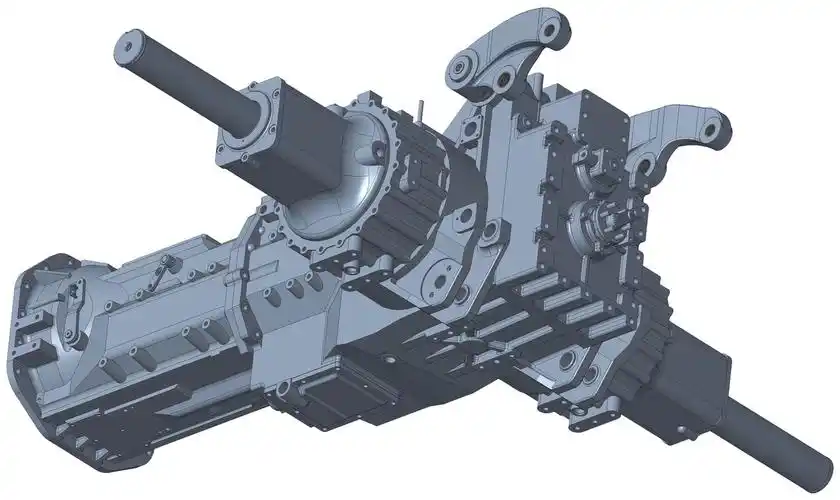

Machine Frames & Chassis

The frame and chassis are the “skeleton” of agricultural machinery, designed to withstand vibration, torque, and the impact of rough terrain.
Traditional sawing and drilling methods often result in dimensional deviations, causing misalignment during welding and weakening the overall structure.

Laser tube cutting not only performs precise cutting but can also process bevels, sockets, and positioning holes at the tube ends, ensuring perfect welding alignment.Accurate angle cutting ensures every joint lies along the designed stress path, greatly enhancing structural stability.

For example, when manufacturing tractor beams with 80×80 mm square tubes, laser cutting can directly create bolt holes and assembly slots on the tube wall—enabling “cut-to-assemble” production and eliminating the need for manual drilling or repositioning.

Protective Guards & Roll Cages

Protective structures are vital for operator safety and are usually composed of multiple round and square tubes welded at complex angles.
Manual processing of these tubes requires repeated measuring and grinding, which is time-consuming and error-prone.

Laser tube cutting enables high repeatability and precise multi-angle cuts—ensuring that all protective bars share identical lengths and angles, guaranteeing uniformity across every machine.
By integrating CAD file importing, complex guard frames can be accurately cut in a single pass without manual finishing.

In the production of roll cages for harvesters and sprayers, laser cutting not only enhances safety but also significantly shortens the cycle from design to finished assembly.

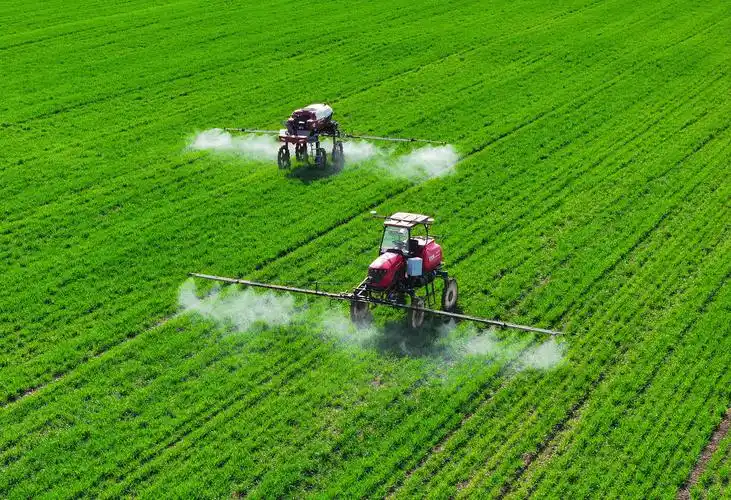

Spray Boom Arms

Spray boom systems demand tubes with high straightness and low weight, while maintaining a smooth inner surface to ensure stable spraying pressure and uniform nozzle distribution.

Laser cutting delivers exceptional linear accuracy with minimal heat distortion. It can also precisely machine connection holes and mounting slots—even on tubes longer than 6 meters—ensuring consistent nozzle spacing and alignment.
Additionally, complex cut patterns can be used to reduce material weight without compromising strength.

For instance, spray boom T-joints that once required manual drilling and welding can now be laser-cut in a single process, drastically improving both efficiency and spray uniformity.

Support Brackets & Mounting Tubes

Support brackets and mounting tubes connect key mechanical components such as hydraulic cylinders, oil tanks, and drive shafts—requiring both high precision and rigidity.
>Laser tube cutting enables quick changeover production, automatically reading CAD data of various tube dimensions and cutting multiple models without replacing fixtures.

This capability is especially important in the manufacturing of combines and seeders, where it helps minimize assembly adjustment time and ensures part consistency.

Hydraulic System Tubes & Connectors

The hydraulic system is the power source of agricultural machinery, and the precision of its tubing directly affects overall system performance.
Traditional drilling often causes burrs, misaligned welds, and leakage risks.

Laser cutting completes all interfaces in a single operation, producing burr-free, smooth edges that enhance sealing and pressure stability.

For example, in hydraulic lifting systems, laser-cut tubes can be directly assembled with standard fittings—requiring no secondary finishing—ensuring long-term reliability and leak-free performance.

Why Laser Tube Cutting Is Crucial for Agricultural Machinery Manufacturing

High Precision and Consistency

Laser cutting achieves tolerances up to ±0.1 mm, ensuring perfect alignment of frames, holes, and assembly angles—essential for both performance and safety.

No Secondary Processing Required

Laser-cut edges are clean and burr-free, eliminating the need for grinding or polishing.
This saves labor costs and speeds up welding, coating, and assembly operations.

Support for Various Tube Shapes and Sizes

A single machine can handle round, square, rectangular, and oval tubes.
For irregular or special-shaped tubes, customized chucks can ensure stable and accurate processing.

Compatibility with Multiple Metals

Whether cutting carbon steel, stainless steel, galvanized steel, or aluminum alloy, laser tube cutting provides consistently clean and precise results.

Automation and System Integration

Modern laser tube cutters can seamlessly integrate with robotic welding systems, automatic loading/unloading lines, and smart factory software—forming a fully automated production workflow.

Design and Engineering Advantages of Laser Tube Cutting

Beyond precision and speed, laser cutting also brings greater design flexibility to engineers and manufacturers:

Tab-and-Slot Design:

Precisely cut interlocking tabs and slots allow parts to self-locate before welding, improving assembly accuracy and joint strength.

Complex Angle Cutting:

Multi-axis bevel cutting heads enable angled cuts for 3D structures such as roll cages and articulated frames.

CAD/CAM Integration & Smart Nesting:

CAD data can be directly imported for automated nesting, optimizing material usage and reducing waste.

Rapid Prototyping & Product Iteration:

Design modifications can be completed within hours, without costly tooling changes—greatly accelerating product development.

How to Choose the Right Laser Tube Cutting Machine for Agricultural Manufacturing

When selecting a laser tube cutting machine, focus on the following key factors:

Laser Power:

For 2–8 mm thick tubes commonly used in agricultural machinery.A 2–3 kW fiber laser source is recommended to ensure both cutting efficiency and stability for carbon and stainless steel.

Automation System:

Automatic loading/unloading systems and smart chucks enable continuous processing and reduced manual intervention.
Look for systems with a “pre-loading” function to minimize cycle time.

Cutting Head Type:

For bevel or 3D cutting applications, choose a 3D bevel head, which improves weld fit and reduces post-processing.

Software System:

The control software should support CAD/CAM data import, automatic nesting, and multi-size tube layout optimization—especially for mixed-size production runs.

Fixture and Chuck System:

Ensure the machine supports customized chuck designs to handle long, heavy, or irregular tubes, maintaining stability during high-speed cutting.

Laser Tube Cutting in Agricultural Machinery Fabrication is no longer just a future trend—it has become the new industry standard.
>It enables manufacturers to perfectly balance precision, efficiency, and intelligent design, helping them stay ahead in a highly competitive global market.

As agricultural machinery continues to evolve toward automation and smart manufacturing, laser tube cutting will remain at the heart of efficient, high-quality production.
