Laser Welding in Tool & Die Industry

The tool and die industry plays a critical role in modern manufacturing, serving as the backbone for producing molds, dies, and precision components used across automotive, aerospace, electronics, and consumer goods sectors. These tools are essential for mass production, but they are also subject to continuous wear and tear. Common issues such as mold cracks, surface wear, and edge damage often lead to costly downtime and frequent repairs.
Traditional repair methods can be time-consuming, introduce significant heat distortion, and sometimes fail to restore the tool’s original precision and accuracy. This is where laser welding emerges as a highly effective solution. By offering precision welding with minimal heat input, laser technology enables accurate mold repair and extends the service life of critical tooling components, helping manufacturers reduce costs and improve efficiency.

What is Laser Welding in Tool & Die Applications?

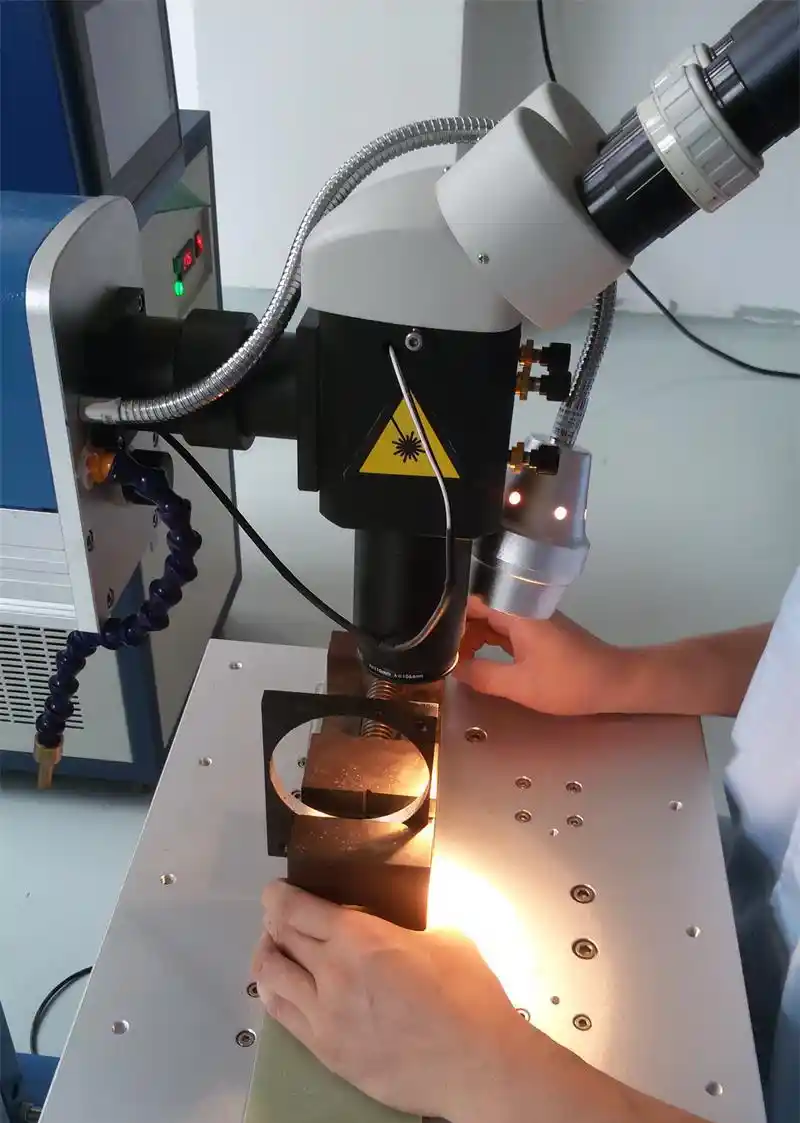

Laser welding for tool and die applications refers to the use of a high-energy, focused laser beam to join or repair metal components with exceptional precision. Unlike conventional methods such as TIG or MIG welding, laser welding generates a much smaller heat-affected zone, which minimizes thermal distortion and preserves the original geometry of the tool.

This precision laser welding process is especially valuable in the tool and die industry, where molds and dies often require fine, detailed repair. Whether restoring worn edges, sealing micro-cracks, or joining intricate parts, laser welding delivers superior accuracy and repeatability. Its non-contact, high-control process ensures that even the most complex geometries can be repaired or connected without compromising the structural integrity of the tool.

Key Benefits of Laser Welding for Tool & Die

Minimal Heat Input

One of the greatest advantages of laser welding for tool and die applications is the extremely low heat input. Compared to traditional welding methods, the laser generates a smaller heat-affected zone, which prevents warping, shrinkage, or changes in material hardness. This is especially critical for precision molds and dies, where dimensional stability directly impacts the quality of the finished product.

Precision and Accuracy

Precision laser welding enables manufacturers to repair micro-cracks, seal fine edges, and restore intricate details that are impossible to achieve with conventional welding techniques. For example, when repairing a die cavity or an ejector pin hole, the laser can target areas as small as fractions of a millimeter, ensuring repairs are clean, controlled, and highly accurate.

Extended Tool Life

Instead of discarding worn or cracked molds, laser welding allows for efficient tool repair, significantly extending tool service life. This reduces the need for costly replacements and helps companies maximize their return on investment. In industries like automotive or aerospace, where tooling is expensive and production downtime is critical, this benefit translates into substantial cost savings.

Material Versatility

Laser welding is compatible with a wide range of tool steels and alloys, including hardened steel, carbon steel, stainless steel, and alloy steel. This makes it an ideal solution for the tool and die industry, where materials are selected based on strength, durability, and resistance to wear. Regardless of the base material, laser welding ensures strong, defect-free joints and seamless repairs.

High Efficiency

The speed and automation capabilities of laser welding enable manufacturers to complete repairs or modifications quickly, reducing downtime on the production line. For example, instead of waiting days for a traditional repair process, a laser welding machine can restore a mold within hours, allowing faster return to production and higher overall throughput.

Common Applications in the Tool and Die Industry

Mold Repair

In the tool and die industry, molds are exposed to extreme pressure, heat, and repeated cycles, which often lead to cracks, surface defects, or worn cavities. Mold repair welding with lasers provides a precise solution to restore injection molds, die-casting molds, and forging molds without compromising their dimensional accuracy. For example, when an injection mold cavity develops micro-cracks, laser welding can fill the damaged area with controlled heat input, maintaining the integrity and surface finish required for high-quality plastic parts.

Die Maintenance

Stamping dies and cutting tools frequently suffer from edge wear, chipped corners, or material loss due to continuous metal forming operations. Die repair laser welding makes it possible to rebuild worn edges and restore sharp contours with high accuracy. This process not only prolongs the service life of expensive dies but also ensures consistent product quality in industries such as automotive body panel production and precision sheet metal fabrication.

Precision Components

Many tool and die components—such as ejector pins, cores, slides, or small inserts—require extreme precision and durability. Traditional welding methods are often unsuitable for repairing such fine features. With precision laser welding, manufacturers can restore these small and detailed parts with pinpoint accuracy, ensuring that even the smallest tolerances are maintained. For instance, tiny mold inserts with detailed engravings or micro-holes can be repaired without distorting the surrounding areas.

Hard-to-Reach Areas

Complex dies and molds often have narrow cavities, deep grooves, or intricate geometries that make traditional welding methods impractical. Laser welding, thanks to its focused beam and non-contact process, can access and repair these hard-to-reach zones efficiently. For example, in die-casting molds with complex cooling channels, laser welding can target damaged areas without the need to dismantle or significantly modify the tool.

Why Choose ZS Laser for Tool & Die Welding

Reliable Equipment – CE Certified

At ZS Laser, we provide reliable laser welding machines that meet international CE certification standards. This ensures safety, stability, and consistent performance for demanding tool and die applications, giving manufacturers confidence in every weld.

Custom Welding Solutions

Every tool and die repair project has unique requirements. That’s why we offer custom welding solutions, including specialized fixtures and clamping systems designed specifically for mold and die components. Our tailored approach guarantees precise positioning, higher efficiency, and seamless integration into your existing repair process.

Strong R&D for the Tool & Die Industry

Our dedicated R&D team continuously refines welding parameters and processes to address the challenges of mold repair and die maintenance. From minimizing heat input to optimizing weld penetration, our solutions are engineered to extend tool life and reduce downtime in the tool and die industry.

Comprehensive After-Sales Support

We don’t just provide equipment—we provide peace of mind. ZS Laser offers full after-sales support, including remote debugging, operator training, and a reliable supply of spare parts. This ensures your production line keeps running smoothly with minimal interruptions.

Recommended Model for the Tool & Die Industry

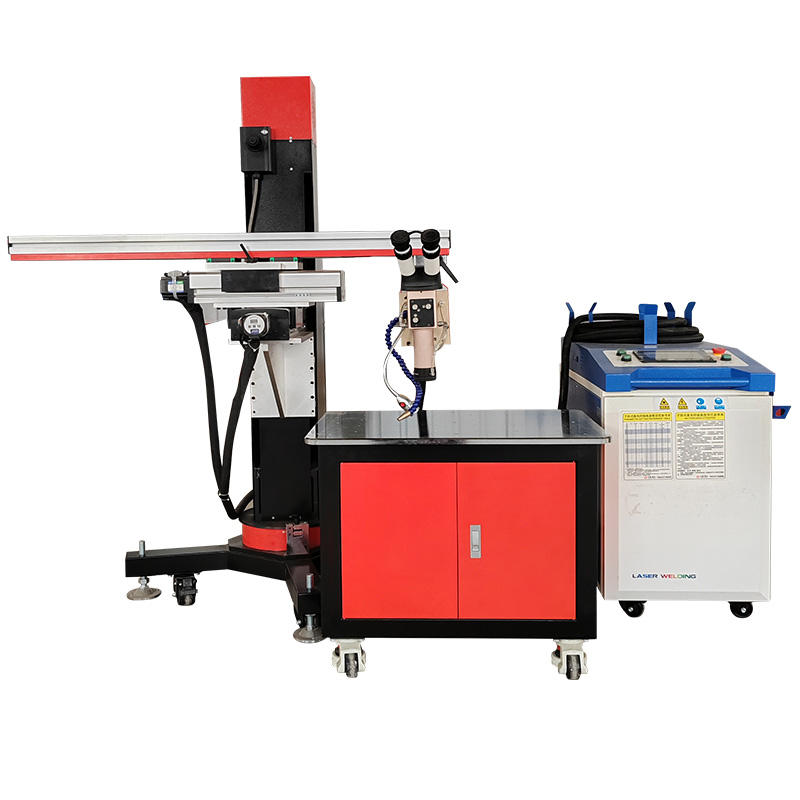

For tool and die repair applications, ZS Laser strongly recommends our Mold Welding Machine.

Designed specifically for mold repair welding and die repair laser welding, it delivers precise energy control and minimal heat input, ensuring mold structures remain intact during repair.

Equipped with advanced optics and motion control, the Mold Welding Machine excels at welding fine cracks, worn edges, and hard-to-reach areas that traditional methods struggle with.

Its stability and high welding accuracy make it the ideal choice for extending tool life while reducing overall repair costs.

By choosing the ZS Mold Welding Machine, manufacturers gain a reliable, industry-focused solution that enhances efficiency and precision in every welding task.

Ready to extend the life of your molds and dies with precision laser welding?

Contact ZS Laser today to explore our Mold Welding Machine and discover how our custom welding solutions can reduce downtime, lower costs, and improve repair quality.
