ZS LASER’s automated laser welding machines are designed for high-precision, efficient welding in industrial applications. With large welding platforms and programmable controls, these machines reduce manual labor, minimize thermal distortion, and deliver repeatable, aesthetically pleasing welds.
We understand that customers have different needs, so we design specialized fixtures based on the specific products they weld. Below are some examples of fixtures we’ve delivered to customers. We support free sample welding tests and look forward to receiving your specific needs and designing products suitable for your welding projects.
Right-Angle Welding Fixture ZS-100
Rotary Shaft Welding Fixture K11-125
Straight Seam Welding Fixture ZS-40
Side-Press Rotary Welding Fixture ZS-200
Gantry Rotary Welding Fixture ZS-300
Tube Sealing Welding Fixture ZS-40
Synchronous sliding and rotating welding fixture
Automatic laser welding machine
How It Works？
The automatic laser welding machine operates on a large welding platform, combining a high-power fiber laser source with a programmable control unit. Workpieces are placed on the stable platform, and the welding path is executed automatically according to preset parameters. The welding gun offers five-dimensional movement, providing a wide welding range. This design ensures the stability, repeatability, and precision of the welding process, making it an ideal choice for high-volume production.
A key component of ZS Laser’s automated laser welding machine is our custom fixture design. Each fixture is meticulously crafted based on the customer’s product drawings and physical samples. Its primary functions include:
Precise Positioning: The fixture ensures that the workpiece is fixed in the exact position required for precision welding.
Multi-Part Clamping: Some fixtures are designed to weld multiple components simultaneously, which maximizes output and efficiency.
Flexible Adjustment: Fixtures can also be designed for three-dimensional movement, allowing for easy adjustment to weld workpieces of different sizes.
Consistency and Repeatability: This eliminates the risk of misalignment or operator error, guaranteeing uniform results across all parts.
Before shipping, ZS Laser adjusts the machine’s welding parameters (e.g., laser power, speed, and focal distance) according to the customer’s specific material and application requirements. We also pre-program the welding sequences based on the samples provided by the customer. This ensures that when the machine arrives, the operator can simply press a single button to start, enabling efficient mass production with minimal setup or technical expertise.
Essentially, the process is simple: place the workpiece, secure it with the custom fixture, press the start button, and the machine will complete the welding automatically, precisely, and efficiently.

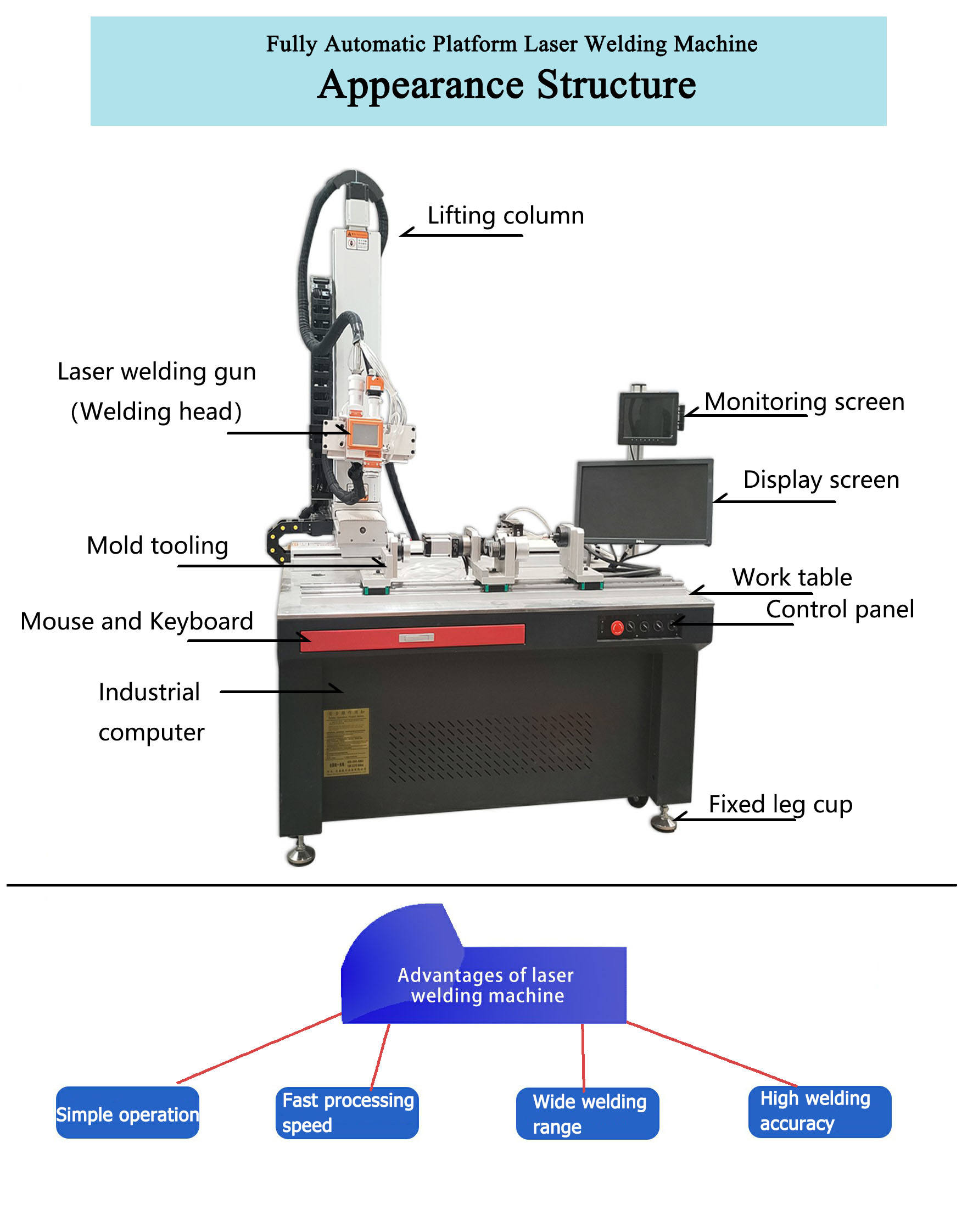

Schematic diagram of various parts of automatic laser welding machine
Key Features & Benefits
High-Precision Fiber Laser Welding
Equipped with a fiber laser source, the machine delivers narrow, clean weld seams with minimal heat-affected zones. This ensures high welding accuracy, low deformation, and excellent consistency—ideal for precision components across various industries.
Customizable Platform Fixtures
The welding platform is designed to accommodate customized jigs and fixtures tailored to the customer’s specific workpieces. By accurately positioning and securely fixing multiple parts at once, it guarantees repeatability and stability in the welding process.
Pre-Adjusted Welding Parameters Before Delivery
ZS LASER configures and tests each machine according to the customer’s product drawings or samples. Welding parameters are fine-tuned prior to shipment, so customers can achieve optimal results immediately after installation without complex adjustments.
Automation & Programmable Operation
The system supports programmable welding paths and automated sequences, making it suitable for multi-point, long-distance, and repetitive welding tasks. This reduces reliance on manual labor, eliminates operator variability, and enables continuous, stable production.
User-Friendly & Minimal Training Required
The intuitive control interface simplifies operation. With ZS LASER’s professional training and guidance, even operators with no prior laser welding experience can quickly master the machine, ensuring smooth integration into the production line.
Batch Production Efficiency
Designed for mass production, the automatic laser welding machine enables fast cycle times and consistent weld quality across large volumes of workpieces. This significantly increases productivity, lowers production costs, and ensures timely delivery to customers.
Applications
The automatic laser welding machine is designed for high-volume and precision welding across multiple industries. With its fiber laser source and customizable platform fixtures, it can handle a wide range of materials including stainless steel, aluminum, carbon steel, copper, and various alloys.
Industry Applications:
Automotive – Efficiently welds body parts, frames, and structural components, supporting large-scale production lines.
Electronics – Ideal for precision welding of battery casings, sensors, and small electronic housings where accuracy and consistency are critical.
Machinery Manufacturing – Supports the welding of sheet metal parts, tubes, and mechanical components for industrial machinery.
Kitchenware & Consumer Goods – Ensures neat, strong welds on stainless steel products such as kitchen sinks, cookware, and household appliances.
Aerospace – Provides high-strength, low-deformation welds for alloy parts used in aircraft and aerospace applications.
By combining automation, precision, and batch processing capability, the automatic laser welding machine is especially suitable for mass production and large-scale welding tasks, helping manufacturers achieve consistent quality and higher efficiency.
Why Buy from ZS LASER?
Choosing the right partner is just as important as choosing the right machine. At ZS LASER, we provide more than just equipment—we deliver complete solutions that help our customers succeed.
Proven R&D and Manufacturing Expertise
Backed by years of experience in laser technology, ZS LASER specializes in developing reliable and advanced welding systems tailored to industrial needs.
Direct Supply from Manufacturer
By working directly with us, you benefit from competitive pricing without additional distributor markups.
Top-Brand Components
Our machines are equipped with leading fiber laser sources and control systems, ensuring stable performance and long service life.
Custom Solutions
From fixture design to parameter pre-setting, we customize the machine based on your product drawings and samples so it is production-ready upon delivery.
After-Sales Support & Spare Parts
We provide timely technical support, replacement parts, and maintenance guidance to keep your machine running at peak performance.
Professional Training
Our training services ensure your team can quickly master the operation, maximizing efficiency and reducing downtime.
With ZS LASER, you get a trusted partner committed to automation, efficiency, and long-term reliability.
Ready to take your production to the next level?
The automatic laser welding machine from ZS LASER delivers the perfect balance of automation, efficiency, precision, and labor-saving performance. With customizable fixtures and pre-set parameters, it is designed to help you achieve faster, more consistent, and cost-effective welding for batch production.
Looking for a reliable solution to streamline your welding process?
Contact ZS LASER today to request a quote and get a customized solution tailored to your production needs.
Below is a welding demonstration video of our automatic platform welding with various welding fixtures：
