G170 Fully-Automatic Fiber Laser Tube Cutting Machine

Product Overview

The ZS Laser G170 Fiber Laser Tube Cutting Machine is designed for precision cutting of round, square, and rectangular metal tubes.
Equipped with a 3000W MAX  fiber laser source and a high-performance BOCHU control system, this machine delivers fast, stable, and highly accurate cutting performance for a wide range of metal processing applications.

It is the ideal choice for manufacturers in metal fabrication, steel structure, furniture, fitness equipment, and automotive industries seeking efficiency and automation.

Technical Specifications

Cutting Length: 7.0 m (optional automatic loading rack)

Feeding Direction: Left-side feeding

XYZ Axis Protection:

XZ Axis fully enclosed

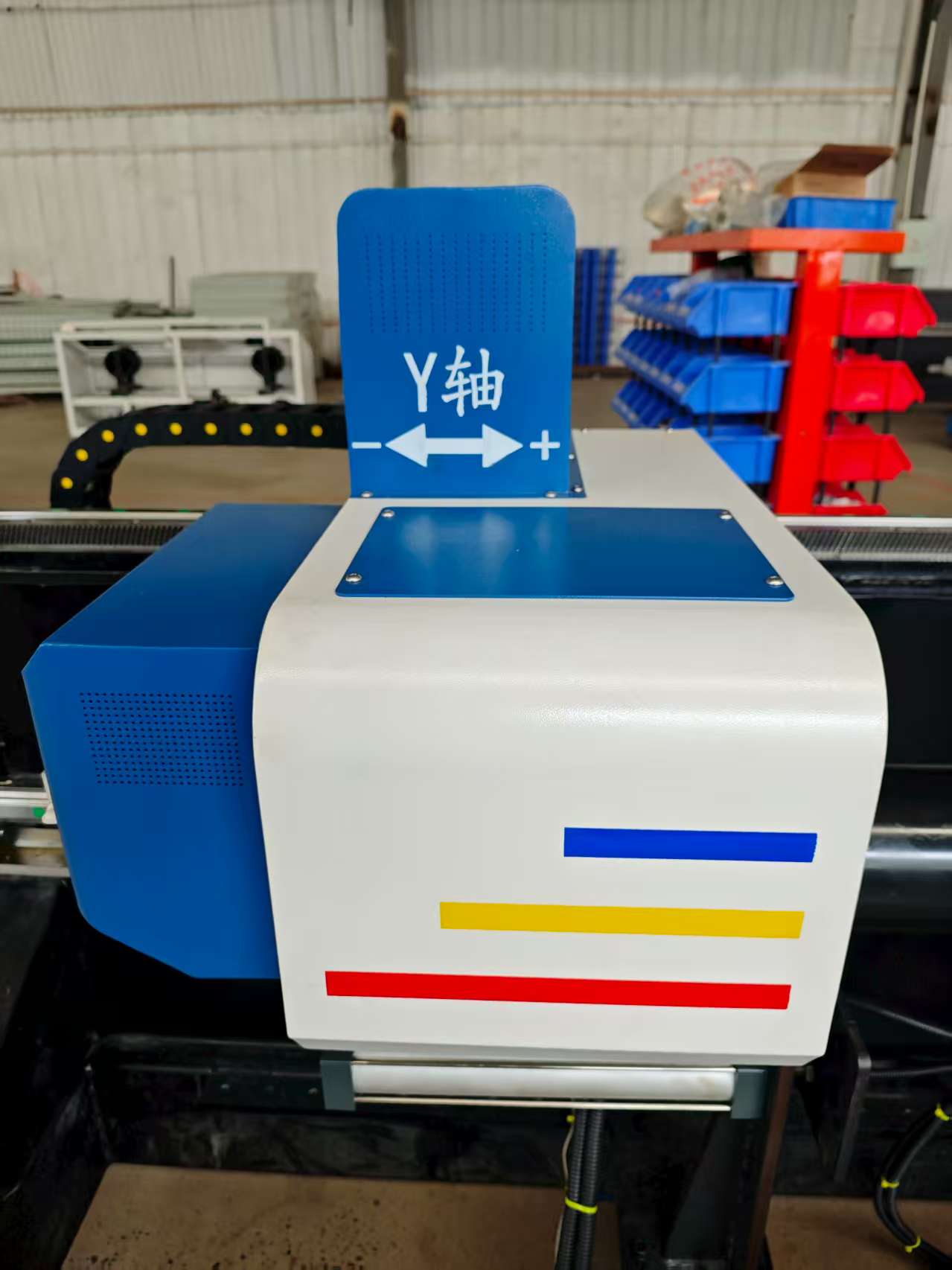

Y Axis double scraper system

Cooling System: S&A CWFL-3000

Total Power: 25.1 kW

Voltage: 380V ±10%, 50/60Hz

Key Advantages of G170 Fiber Laser Pipe Cutting Machine

1. Zero-Tail Pneumatic Chuck for Material Efficiency

The RunYuan 170mm precision pneumatic chuck ensures zero material waste during tube cutting.
Its servo-driven structure automatically centers different tube shapes, supporting both round and square pipes for efficient metal tube cutting.

2. Stable 3000W Fiber Laser Source

The Chuangxin fiber laser provides consistent beam quality, allowing clean, smooth steel pipe cutting with low maintenance and excellent energy efficiency.

3. High-Precision Transmission Components

Imported TBI ball screws and RUSON linear guides from Taiwan guarantee smooth motion, reducing vibration and maintaining micron-level accuracy.

4. Intelligent BOCHU Control System

BOCHU fiber laser CNC enables automatic nesting, shape recognition, and optimized cutting paths — turning the G170 into a fully intelligent tube laser cutting machine that even new operators can handle easily.

5. Reliable Lubrication & Electrical Safety

Dual volumetric lubrication systems with oil recovery ensure smooth transmission and clean operation.

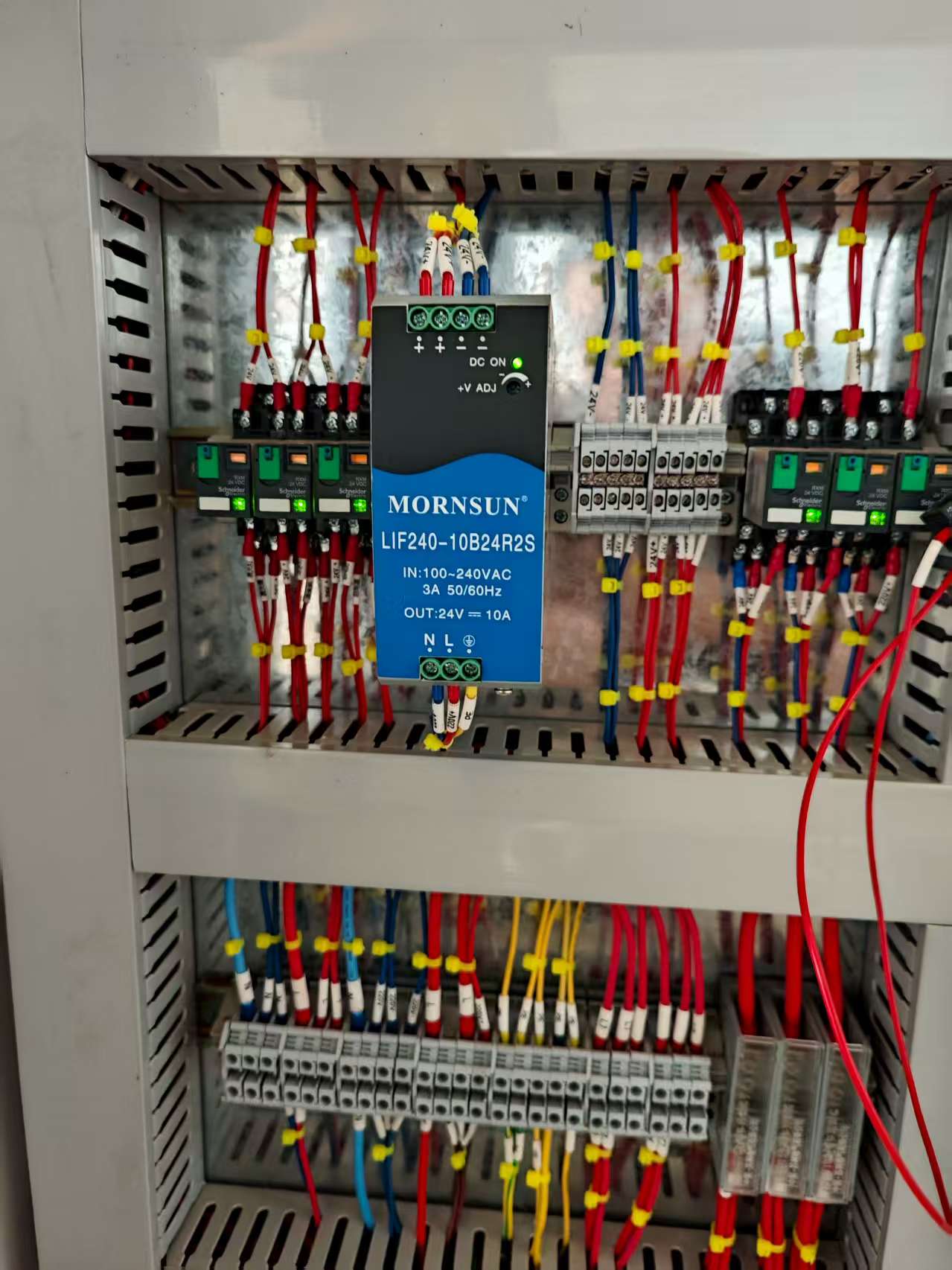

All electrical parts (Delixi / Schneider) meet industrial-grade safety standards for long-term stability.

6. Optional Automatic Loading System

A servo-controlled loading rack (optional) allows fully automatic feeding and continuous batch tube cutting, perfect for high-output manufacturing lines.

7. Heavy-Duty Frame for Vibration-Free Cutting

The ZSJG side-mounted bed is precision welded and stress-relieved, providing unmatched stability during high-speed laser pipe cutting.

Applications of G170 Laser Tube Cutting Machine

The G170 laser tube cutting machine is designed for precision, efficiency, and flexibility, making it an ideal choice for a wide range of metal tube and pipe processing industries. With its automatic feeding system, zero tailing pneumatic chuck, and high-speed servo control, the G170 provides clean, accurate cuts for both small-batch customization and mass production.

1. Steel Furniture & Metal Frames

The G170 is widely used in steel furniture manufacturing — including chairs, tables, and shelving frames. Its high cutting precision ensures tight joints and smooth edges, reducing the need for secondary grinding or polishing.
For furniture tube frame factories, the G170 enables fast cutting of square, round, and oval pipes with perfect repeatability, helping improve product consistency and reduce production cost.

2. Gym & Fitness Equipment

In the fitness equipment industry, tube structures are the backbone of treadmills, weight racks, and gym frames. The G170’s high-speed rotary chuck and multi-shape cutting capability make it easy to process thick-walled and high-strength steel pipes, ensuring perfect fit-up for welding and assembly.

3. Agricultural Machinery Components

Agricultural machinery requires durable and precisely cut metal tubes for structures such as protective frames, plow supports, and machinery housings.
The G170’s 3kW MAX fiber laser source delivers strong cutting power and high efficiency even on thick-walled carbon steel, ensuring consistent quality in heavy-duty agricultural parts fabrication.

4. Steel Structure & Construction Parts

In the construction and steel structure industry, the G170 is used for cutting various types of structural tubes — including square, rectangular, and circular profiles.
Its automatic loading and unloading system allows for long pipe processing (up to 7 meters), improving cutting efficiency in large-scale structural fabrication projects such as handrails, frames, and scaffolding systems.

5. Automotive Exhaust Systems & Accessories

The automotive industry demands precision and reliability in exhaust pipe and chassis component manufacturing.
With its smooth edge quality and high repeatability, the G170 fiber laser cutting machine ensures perfect weld fit-up and minimal distortion — ideal for stainless steel and alloy tube cutting used in exhaust, fuel, and intake systems.

6. General Metal Tube Fabrication and Pipe Cutting Automation

Beyond specific industries, the G170 supports all kinds of metal tube processing tasks — from small diameter decorative tubes to large industrial pipes.
Its BOCHU control system offers intelligent programming, automatic nesting, and one-click operation, helping users achieve full automation in tube cutting production lines.

Why Choose ZS Laser

10+ Years of Experience in laser cutting and welding systems
Custom Automation Design for metal fabrication lines
Free Sample Cutting & Parameter Testing before purchase
One-Year Machine Warranty + Lifetime Maintenance
Global After-Sales Support and Remote Assistance

At ZS Laser, we don’t just manufacture machines — we provide complete fiber laser cutting solutions.
The G170 laser tube cutting machine helps factories move from manual cutting to fully automated intelligent production, improving both efficiency and profitability.
