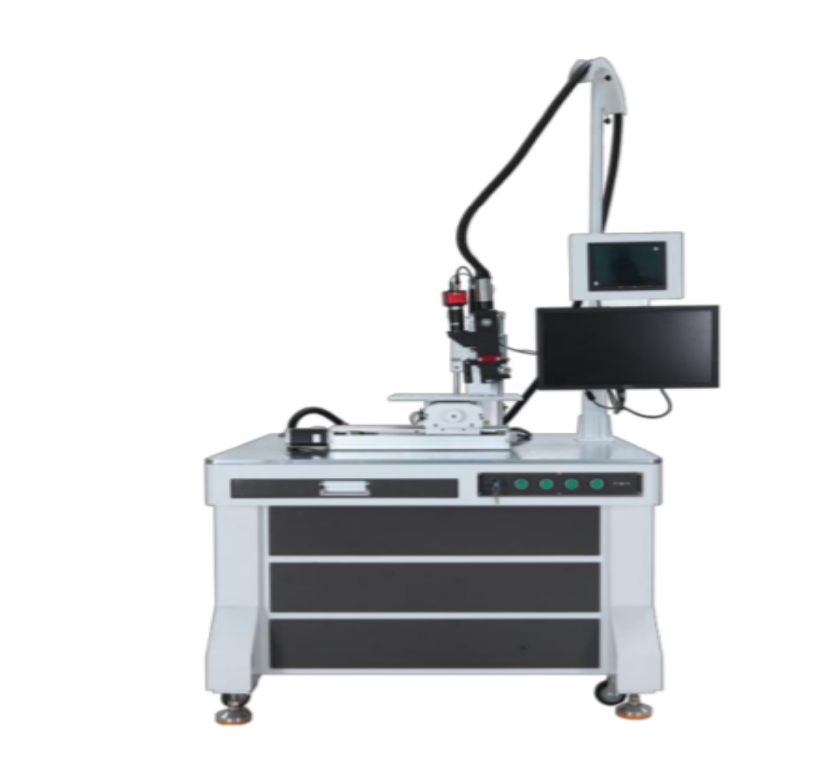

Plastic Laser Welding Machine

High-Precision, Flexible, and Fully Customizable Plastic Laser Welding Solutions

ZS Laser has extensive experience in the field of laser welding equipment, offering advanced plastic laser welding machines that combine precision, efficiency, and versatility. Leveraging decades of R&D and a comprehensive welding process database, ZS Laser machines provide optimized solutions for a wide range of thermoplastic materials across industries including automotive, medical, electronics, home appliances, lighting, and packaging.

Machine Overview

ZS Laser plastic laser welding machines are designed for flexibility and precision. Key highlights include:

Motion Dimensions: Available in 3-axis, 4-axis, or 5-axis configurations to meet complex part geometries. Options include enclosed or open designs and robotic arm integration for automation.

Laser Type: Continuous semiconductor laser provides stable, high-quality energy output.

Customizable Working Area: Adaptable to small components or large assemblies.

Laser Wavelength: 980 nm, 1710 nm, or 1940 nm, selected based on material transparency and thickness.

Laser Output Power: 100–500 W for consistent, high-speed welding.

Welding Speed: 1000 mm/s

Electrical Requirements: Rated voltage AC 220V, total power 4000W.

Laser Spot Type & Size: Point-shaped laser spot with adjustable size from 1–5 mm for precise energy control.

Cooling System: Water-cooled to maintain stable laser operation and long-term reliability.

Technical Principles

ZS Laser plastic welding machines employ laser transmission welding and quasi-synchronous welding technologies, offering the following advantages:

Non-contact Welding: Avoids mechanical stress and deformation, ensuring high-quality weld seams.

Transparent Plastic Welding: Enables direct welding of transparent or semi-transparent plastics without the need for additives.

Precise Energy Control: Adjustable spot size, laser power, and welding speed ensure repeatable results on complex geometries.

Multi-Material Compatibility: Capable of welding thermoplastics such as ABS, AS, PP, PE, PA, PC, PMMA, PS, PBT, POM, COC, TPU, and reinforced engineering plastics.

Multi-Axis Coordination: Robot-assisted or rotary axis welding allows high-efficiency production of complex parts.

How It Works: The laser energy is absorbed by the plastic at the joint interface, melting the material locally to form a strong bond as it cools. This process maintains material integrity, eliminates the need for adhesives or mechanical fasteners, and delivers precise, clean weld seams.

Welding Types

ZS Laser machines support multiple welding types based on production needs:

Welding Type	Description	Typical Use Cases
Transparent/Semi-transparent to Opaque	Laser passes through clear plastic and melts contact surface of opaque plastic	Medical devices, automotive lenses
Transparent to Transparent	Specialized laser settings for direct welding of clear plastics	Packaging, electronics covers
Custom	Tailored solutions based on specific product geometry and material combinations	Industry-specific applications

Note on Material Transparency:
When it comes to plastic laser welding, the external appearance of the material alone does not determine weldability. Some plastics that appear opaque can still transmit infrared laser light, such as 980 nm, and are fully weldable. To ensure optimal results, material weldability should be evaluated based on infrared light transmission rather than visual transparency. For specific materials or complex components, please contact us for technical consultation and testing.

Advantages & Benefits Of ZS Plastic Laser Welding Machine

High Precision & Quality: Clean, deformation-free welds suitable for aesthetic and functional applications.

Fast Production Setup: Preloaded welding process database accelerates trial, testing, and deployment.

Material Flexibility: Supports a wide range of thermoplastics and engineering plastics, including reinforced and composite materials.

Automation Ready: Robotic arms and multi-axis systems enable high-efficiency automated welding.

Energy Efficiency & Safety: Water-cooling system and precise power control ensure stable operation and minimal energy waste.

Scalable for Production: Suitable for prototyping, small batch, and mass production.

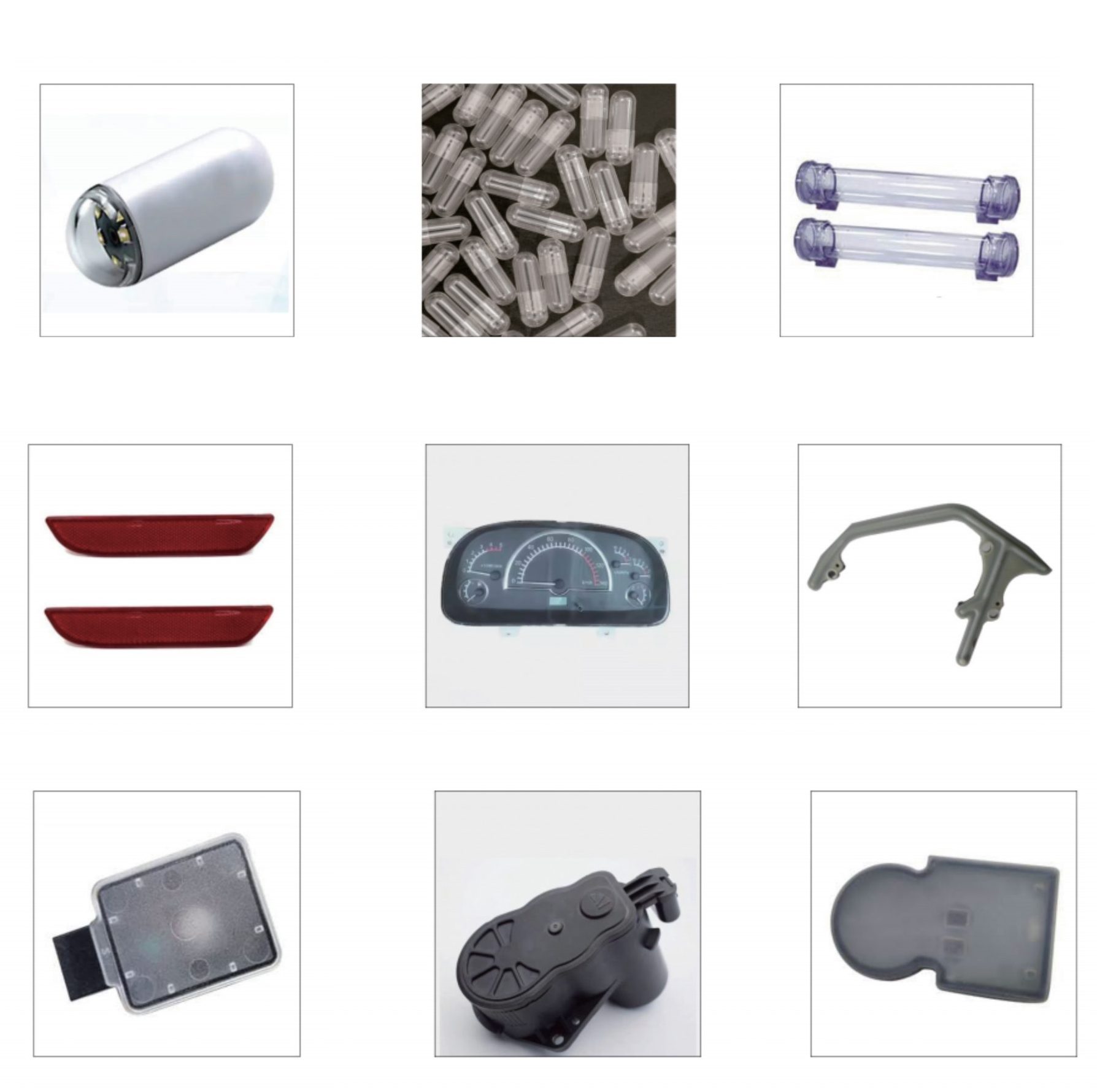

Applications Across Industries

Automotive: Battery packs, interior panels, lighting covers, filters

Medical: Device housings, surgical instruments, tubing, diagnostic equipment

Electronics: Casings, connectors, display components, sensors

Home Appliances: Control panels, enclosures, small household devices

Lighting: LED assemblies, lamp covers, decorative lighting

Packaging: Precision sealing for transparent and opaque plastic packages

ZS Laser’s Product Portfolio

Quasi-Synchronous Plastic Laser Welding Machines: High-precision, controlled-energy welding for thin and complex parts.

Multi-Axis Plastic Laser Welding Machines: Robot-assisted solutions for 3D geometries and high-volume production.

Rotary & Rolling Welding Equipment: Specialized machines for cylindrical and tubular plastic parts.

Our extensive equipment line, combined with our process expertise, allows ZS Laser to provide end-to-end solutions for almost any plastic welding challenge.

Why Choose ZS Laser

Experience: Decades of process development and production experience in plastic laser welding.

Customization: Machines designed and programmed according to customer part geometry, material, and production requirements.

Global Reach: Trusted by clients worldwide in automotive, medical, electronics, and other high-tech industries.

Technical Support: Comprehensive support from trial testing to production deployment.

Innovation: Continuous R&D ensures compatibility with new materials and evolving industry standards.

ZS Laser Plastic Laser Welding Machines deliver reliable, high-precision, and scalable solutions that empower industries to optimize production, improve product quality, and reduce manufacturing costs.

Contact ZS Laser today to discuss your welding requirements and explore a fully customized solution.
