Troubleshooting Handheld Laser Welder Head Issues: Motor Wobble and Abnormal Oscillation

In daily laser welding operations, users may occasionally encounter problems with the welding head motor, such as abnormal noise, overheating, or even lens damage.

These issues, if not addressed correctly, can affect welding quality and even shorten the lifespan of key components.

In this article, ZS Laser shares detailed troubleshooting methods for one of the most common handheld laser welder faults — motor wobble and oscillation issues in the welding head.

Problem Description

1. Abnormal Motor Behavior

After power-on, the welding head motor at the tail section may exhibit:
High-pitched noise or “whistling” sound
Abnormal laser red light flashing
Motor overheating
Unable to adjust wobble width

2. Optical Damage

In more severe cases, the sealing ring and focusing lens may burn simultaneously, indicating overheating or electrical signal failure inside the system.

Root Causes and Solutions

The wobble (oscillation) of a handheld laser welding head is controlled by a driver inside the control box, which sends signals to the motor via a connecting cable.
If there is a signal error — caused by poor contact, cable disconnection, external interference, or mismatch between the motor and driver — the issues described above can occur.

Below are the most common causes and their corresponding solutions:

1. Loose or Poor Contact in the Connector (SUP20S Welding Gun)

For the SUP20S handheld welding gun, the motor connection terminal is built into the gun’s connector.
Poor contact at this internal terminal can lead to abnormal motor signals, resulting in noise or wobble failure.

Solution:

Unplug and reinsert the connector several times to restore proper contact.
This simple step can often eliminate the “whistling” or “no wobble” issue immediately.

2. Broken or Poorly Soldered Wires in the Aviation Plug (SUP15S Welding Gun)

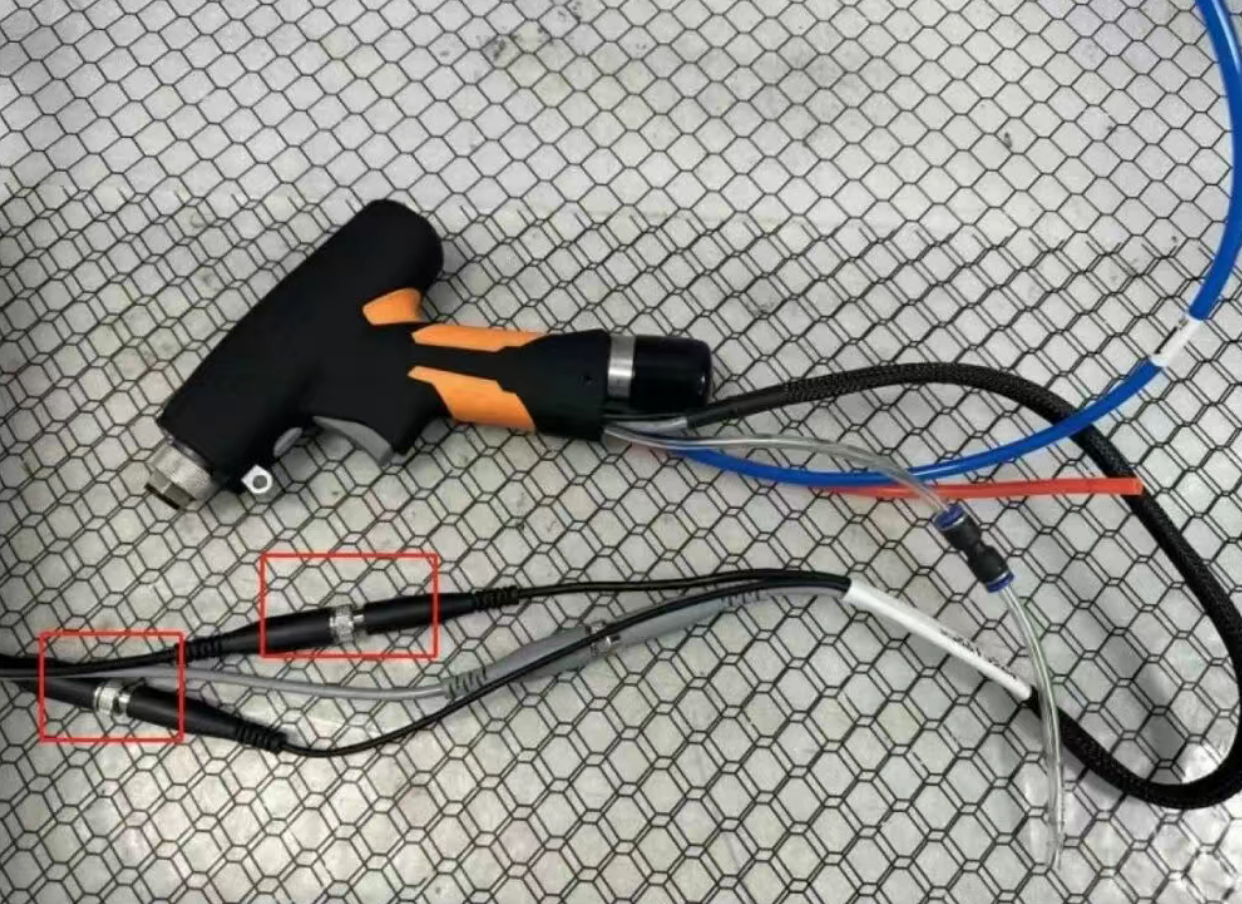

For the SUP15S handheld welding gun, the motor signal and power lines are connected via a five-core aviation plug (as shown in the photo: two black cables).
If one of the wires inside this connector is broken or poorly soldered, the motor may lose signal or stop oscillating.

Solution:

Disassemble the aviation plug and carefully inspect each pin connection.
Repair any broken or weak solder joints, or replace the connector if necessary.

3. Driver–Motor Mismatch or Electrical Interference

If the wobble motion appears normal and the red laser light does not flicker, but you still experience unstable oscillation, it may indicate a driver–motor incompatibility or electrical interference issue.
This problem usually occurs in:
Newly installed machines
Welding heads recently replaced or upgraded

Solution:

You can fine-tune the potentiometer on the driver board to improve motor stability.

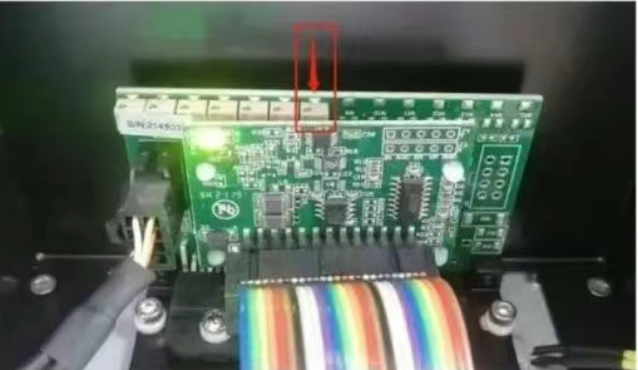

Potentiometer location:
On the Y-axis connector section — the 7th knob from the left (as shown in the image below).

Adjustment steps:

1.Keep the system powered on.

2.Use a flat-head screwdriver to slowly turn the potentiometer in one direction.

3.If there’s no change after 10 full turns, return to the original position and turn in the opposite direction.

4.If adjusting the 7th potentiometer has no effect, try adjusting the 4th knob from the left.

This tuning helps synchronize the driver’s output signal with the motor’s response, reducing noise, vibration, and heat generation.

4. When Lenses or Seals Burn Out

If both the sealing ring and focusing lens burn out simultaneously, check for external electrical interference first.

If an interference power source (e.g., unstable grounding or nearby high-power equipment) exists — eliminate the interference.If no interference source is found, the most likely cause is a faulty motor cable.

Solution:

Replace the motor cable directly to restore stable operation and prevent further optical damage.

Preventive Tips from ZS Laser Engineers

To reduce the likelihood of motor-related issues in handheld laser welders:

Avoid frequent bending or twisting of the motor cable.

Ensure all aviation plugs and connectors are fully inserted and locked.

Keep the control box clean and dry to prevent electrical interference.

If upgrading the welding gun model (e.g., from SUP15S to SUP20S), confirm driver compatibility before installation.

Motor oscillation problems in handheld laser welders are typically signal or connection related, not mechanical failures.

By following the steps above — checking connectors, cables, and driver settings — most users can quickly restore normal operation without replacing the entire welding head.
