Why the Laser Welding Gun is Crucial When Choosing a Laser Welding Machine?

When selecting a laser welding machine, most buyers tend to focus on power and price. While these factors are important, one critical component is often overlooked—the laser welding gun.

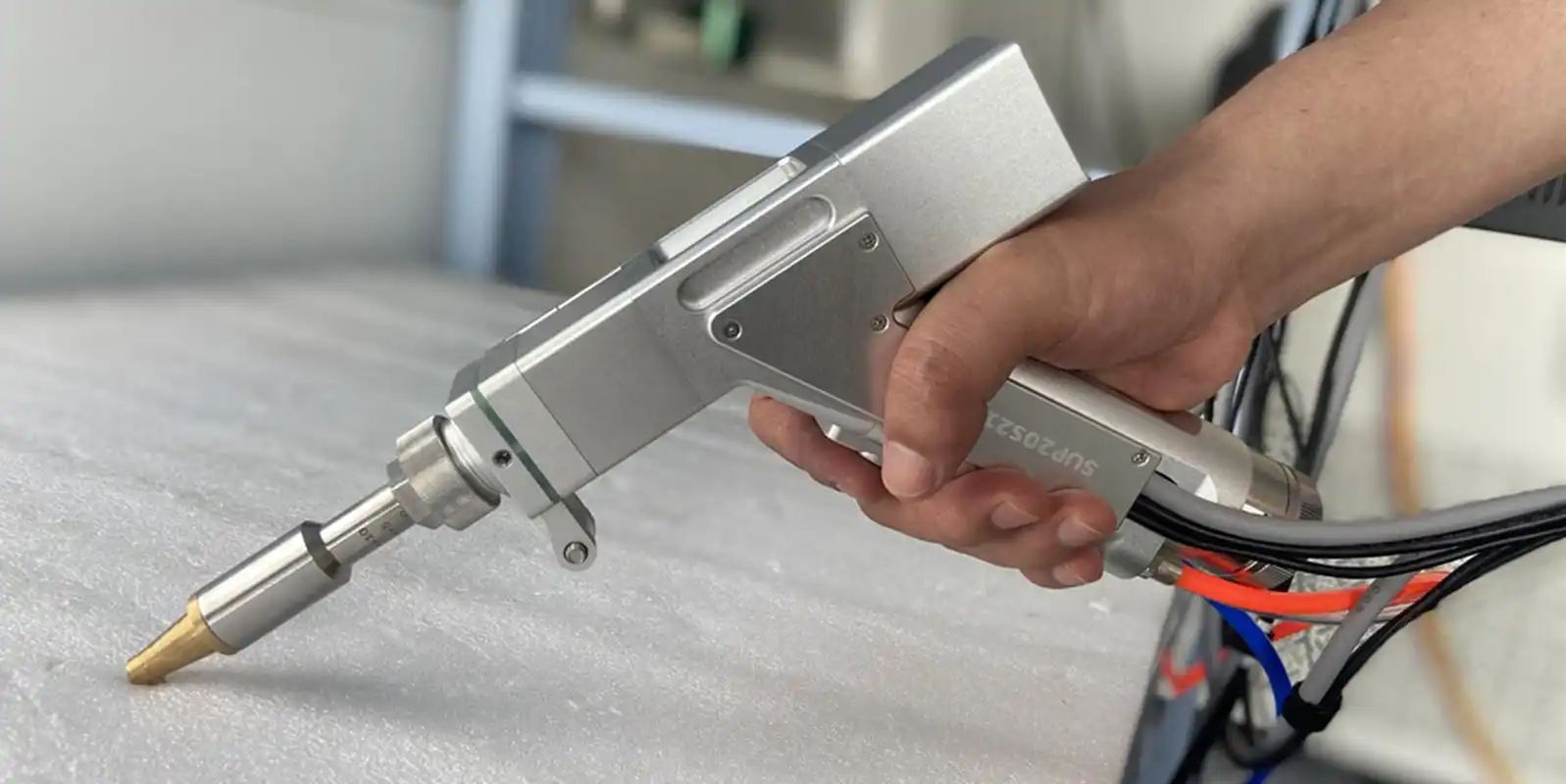

The welding gun is the part that the operator directly interacts with, and it plays a decisive role in welding performance. A well-designed laser welding gun ensures stable energy transmission, protects optical components, and provides a comfortable operating experience during long working hours. Ignoring the quality of the welding gun can lead to frequent maintenance, unstable welding, and reduced production efficiency. Therefore, choosing the right laser welding gun is just as important as selecting the proper laser source or power level.

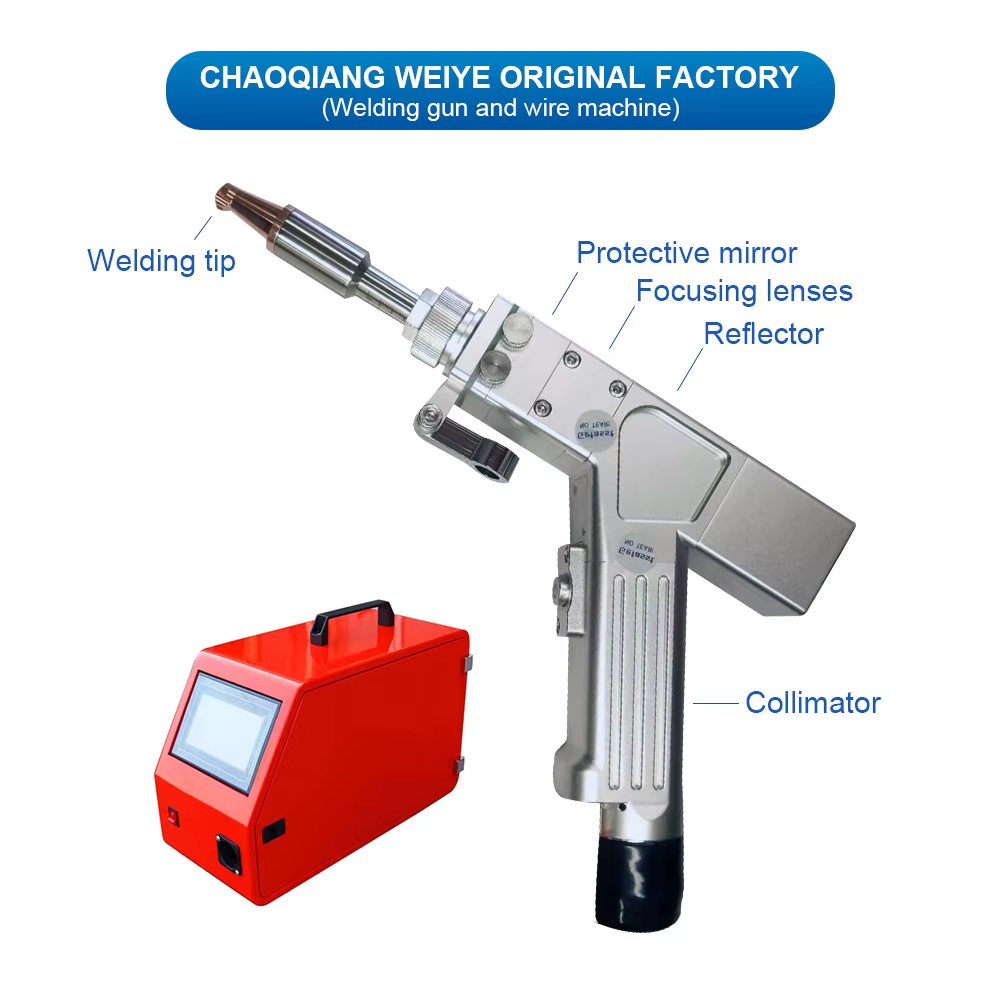

Main Components of a Laser Welding Gun

As the “front-end actuator” of a laser welding machine, the construction of the welding gun directly affects stability, efficiency, and user experience. A high-quality welding gun typically consists of the following key components:

Fiber Interface

The fiber interface is the core channel for laser energy transmission, connecting the laser source to the welding gun. The design and precision of the interface determine energy loss and stability during transmission. Poor-quality fiber interfaces can result in energy attenuation, uneven laser spots, and ultimately compromised weld quality.

Protective Lens

Located at the front of the welding gun, the protective lens blocks metal spatter, dust, and smoke generated during welding. The lens’s cleanliness and durability directly impact welding quality and the lifespan of the gun. A contaminated or burned lens not only reduces welding effectiveness but can also damage internal optical systems, making high-quality, easily replaceable lenses essential.

Cooling System (Water-Cooled / Air-Cooled)

During laser welding, the gun is exposed to high-energy laser beams and environmental heat for extended periods, requiring an efficient cooling system to maintain stable operation. Common cooling methods include:

Water Cooling: Provides superior cooling, suitable for long-duration continuous operation and high-power welding.

Air Cooling: Simpler in structure, ideal for medium-to-low power applications requiring flexibility.
The reliability of the cooling system determines whether the welding gun can maintain consistent performance during prolonged use.

Control Buttons & Handle Design

The user experience is often overlooked but directly affects operator efficiency and safety. Ergonomically designed handles reduce fatigue during long shifts, while strategically placed control buttons make operation more intuitive and safer. Especially for handheld laser welding, a lightweight, comfortable gun significantly enhances productivity.

Standards for a Good Welding Gun

Selecting a high-quality laser welding gun not only ensures welding quality but also improves user experience and production efficiency. Key criteria for evaluating a welding gun include:

Lightweight & Ergonomic

The gun should be appropriately weighted and comfortable to hold, following ergonomic design principles. Operators can perform long, continuous welding without significant fatigue, improving work efficiency and weld accuracy.

Strong Protection

A quality welding gun features multi-layer protection for the lens, fiber interface, and nozzle, effectively blocking spatter, dust, and smoke. This reduces maintenance frequency and cost, while extending the gun’s lifespan.

Excellent Heat Dissipation

An efficient cooling system (water or air) ensures the gun maintains stable performance even during prolonged continuous welding, preventing overheating that could compromise weld stability or damage components.

Long Lifespan & Easy Maintenance

A durable, well-structured gun with long-lasting core components minimizes breakdowns. Spare parts are easy to replace, simplifying daily maintenance, reducing downtime, and ensuring continuous production.

Common Issues and Customer Pain Points

Even with a high-quality laser welding machine, problems with the welding gun itself can directly affect production efficiency and weld quality. Common pain points include:

Lens Burnout

Spatter or dust during welding can damage the protective lens, leading to frequent replacements, increased downtime, and higher maintenance costs, while disrupting welding continuity.

Cable Breakage or Heaviness

Low-quality welding guns often have cables that break easily or are too heavy, making operation inconvenient and limiting welding movements, which directly reduces production efficiency and welding precision.

Bulky or Uncomfortable Grip

A heavy gun or poorly designed handle causes operator arm and shoulder fatigue during long shifts, reducing efficiency and potentially affecting weld quality.

Overheating

When the cooling system is inadequate, the gun may overheat during continuous operation, leading to unstable welds and increasing the risk of equipment failure, which impacts overall production stability.

ZS Solutions and Advantages

In laser welding production, the performance of the welding gun directly influences welding efficiency, weld quality, and operator experience. ZS Laser has extensive experience in selecting and applying welding guns. Our solutions effectively address common welding issues and provide long-term, stable production support.

Using Top Domestic Brand Welding Guns

We select first-tier domestic welding guns, proven in industrial applications for high stability and reliability. Compared to low-end guns, these high-quality guns excel in laser transmission, cooling efficiency, and structural durability, ensuring continuous operation without energy loss or failure. They are particularly suited for automotive parts, precision hardware, and electronics manufacturing.

Stable and Reliable

Core components of ZS Laser welding guns, such as fiber interfaces, protective lenses, and cooling systems, are made with premium materials and precision engineering. This ensures stable energy delivery, consistent welds, and significantly reduces production downtime caused by lens damage, cable aging, or overheating. Reliable welding guns not only improve product quality but also make factory operations more predictable and efficient.

Easy Maintenance

Maintenance is a critical factor for long-term production. Our guns are designed for easy maintenance: protective lenses, cables, and other consumable parts are readily available and simple to replace, allowing workers to perform replacements without specialized training, minimizing downtime. The fiber interface and cooling system are also structured for long-term durability, reducing maintenance stress.

Comfortable Operation

Ergonomic design enhances operational efficiency. Our guns are lightweight, with handles designed for comfort, reducing arm fatigue during extended welding. A light, easy-to-control gun allows operators to focus on precision and efficiency, especially in complex or precision component welding.

Strong After-Sales Support

Choosing ZS Laser means not only high-quality welding guns but also comprehensive after-sales service:

Free sample tests: Verify performance and compatibility with actual workpieces.

Technical support: From machine selection and welding parameter optimization to operational training, our engineers provide full guidance.

Spare parts availability: Sufficient stock of protective lenses, cables, and other key components ensures quick replacement without long wait times.

Through these advantages, ZS Laser helps customers avoid issues such as lens burnout, cable breakage, uncomfortable grip, and overheating, while ensuring long-term stability in production efficiency, weld quality, and operator experience. Choosing our laser welding machines with high-quality welding guns is a key step toward efficient, reliable, and sustainable production.

Take Action Today:

When selecting a laser welding machine, the quality of the welding gun is critical for overall user experience, weld quality, and production efficiency. A reliable, ergonomic, and well-protected welding gun ensures smooth operation, reduces downtime, and maximizes output.

At ZS Laser, our machines are equipped with top-tier domestic brand welding guns, offering stable performance, easy maintenance, and comfortable operation. This combination enables our customers to achieve more efficient, precise, and reliable production across various applications.

Get a free welding sample test – verify our machine performance and compatibility with your materials.

Contact us for customized laser welding solutions – let our experts help you select the system that best meets your production needs.
