In the metal fabrication industry, mass production is both an opportunity and a challenge.
How to improve production efficiency while maintaining high welding precision has become a key concern for many manufacturers.
Traditional manual welding methods can no longer meet the growing demand — they are low in efficiency, inconsistent in quality, and costly in labor, which limits production expansion.
Recently, a domestic manufacturer specializing in metal cages partnered with ZS Laser to upgrade its production line with automated laser cutting and welding systems, achieving a major step toward intelligent manufacturing.
ZS Robotic Fully Automated Welding Machine
Customer Background & Project Overview
The customer is engaged in the long-term production of metal cages and steel frame structures, which involve large quantities of square tube cutting and welding on a daily basis.
Due to the high batch volume and repetitive nature of their products, they needed a solution that ensured both precision and speed — making automation the key to enhancing competitiveness.
To meet this need, ZS Laser provided a complete automation solution, including:
One laser tube cutting machine (already installed and in use)
One robotic laser welding system (currently under commissioning)
These two systems work seamlessly together: square tubes are precisely cut by the laser tube cutting machine and then transferred to the robotic welding workstation for automatic welding — creating a continuous and highly efficient production flow.
Customized Robotic Laser Welding Solution
The core of this project is ZS Laser’s customized robotic laser welding system.
Equipped with a multi-axis robotic arm, the system performs flexible multi-angle welding.
ZS Laser’s engineering team designed and configured the system specifically according to the customer’s product structure and welding process requirements.
In fully automated welding, the fixture design is a critical factor determining accuracy and efficiency.
ZS Laser designed a large custom welding fixture platform to securely position the workpieces.
Once the tubes are placed on the platform, the robotic welder automatically identifies the positions and begins the welding process — achieving true hands-free operation.

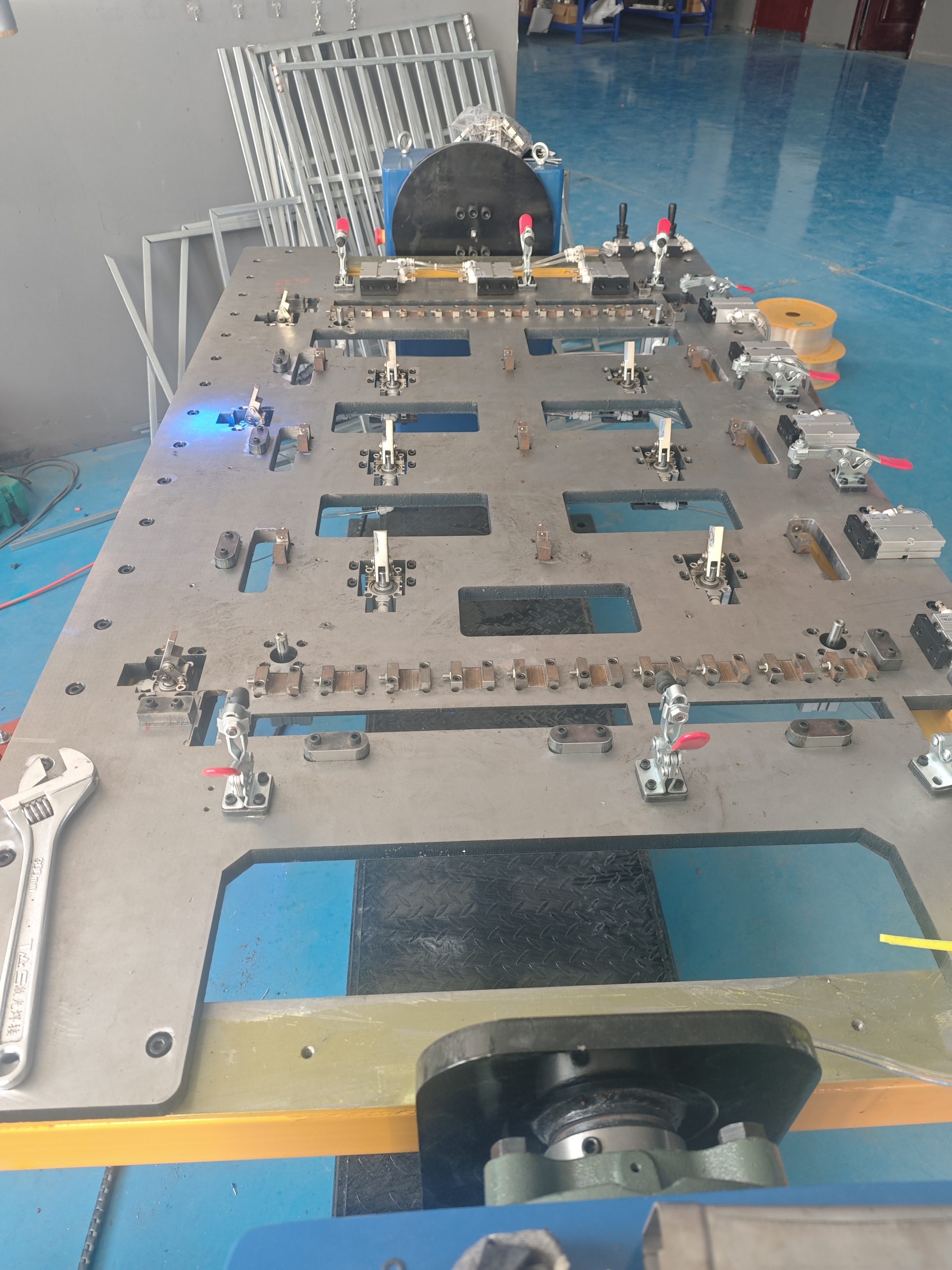

ZS Cage Welding Custom Welding Fixtures
The combination of the custom fixture and robotic welding system enables synchronized multi-point welding and quick workpiece positioning, greatly improving throughput and consistency.
Technical Highlights & Engineering Details
ZS Laser’s robotic welding system integrates high-precision motion control with intelligent laser welding technology.
Key technical features include:
Custom Fixture Design – Multi-point clamping mechanism designed according to the tube structure ensures accurate positioning and quick replacement.
High-Precision Laser Welding – The robot follows preset paths for precise, smooth, and strong weld seams.
Stable Fiber Laser Source – Ensures consistent energy output, smooth weld formation, and minimal heat-affected zones.
Intelligent Parameter Control – Precise adjustment of focal position, welding speed, and power to achieve optimal results for different weld areas.
Electrical & Safety Protection – Anti-interference grounding and optical safety designs extend equipment lifespan and ensure operator safety.
Every component and process undergoes rigorous calibration and testing to guarantee long-term precision and stability during continuous operation.
On-Site Commissioning & Testing
Before delivery, the ZS Laser engineering team carried out comprehensive on-site debugging and testing to ensure system reliability and performance.
Testing included:
Calibration of laser focus and welding parameters
Verification of fixture repeatability and positioning accuracy
Real-material welding trials and finished product inspection
ZS engineers also provided operator training, covering daily maintenance, parameter adjustment, and safety procedures — ensuring the customer’s team can independently manage production.
After commissioning, the robotic system can perform continuous automatic welding with minimal human supervision, achieving stable and efficient production.

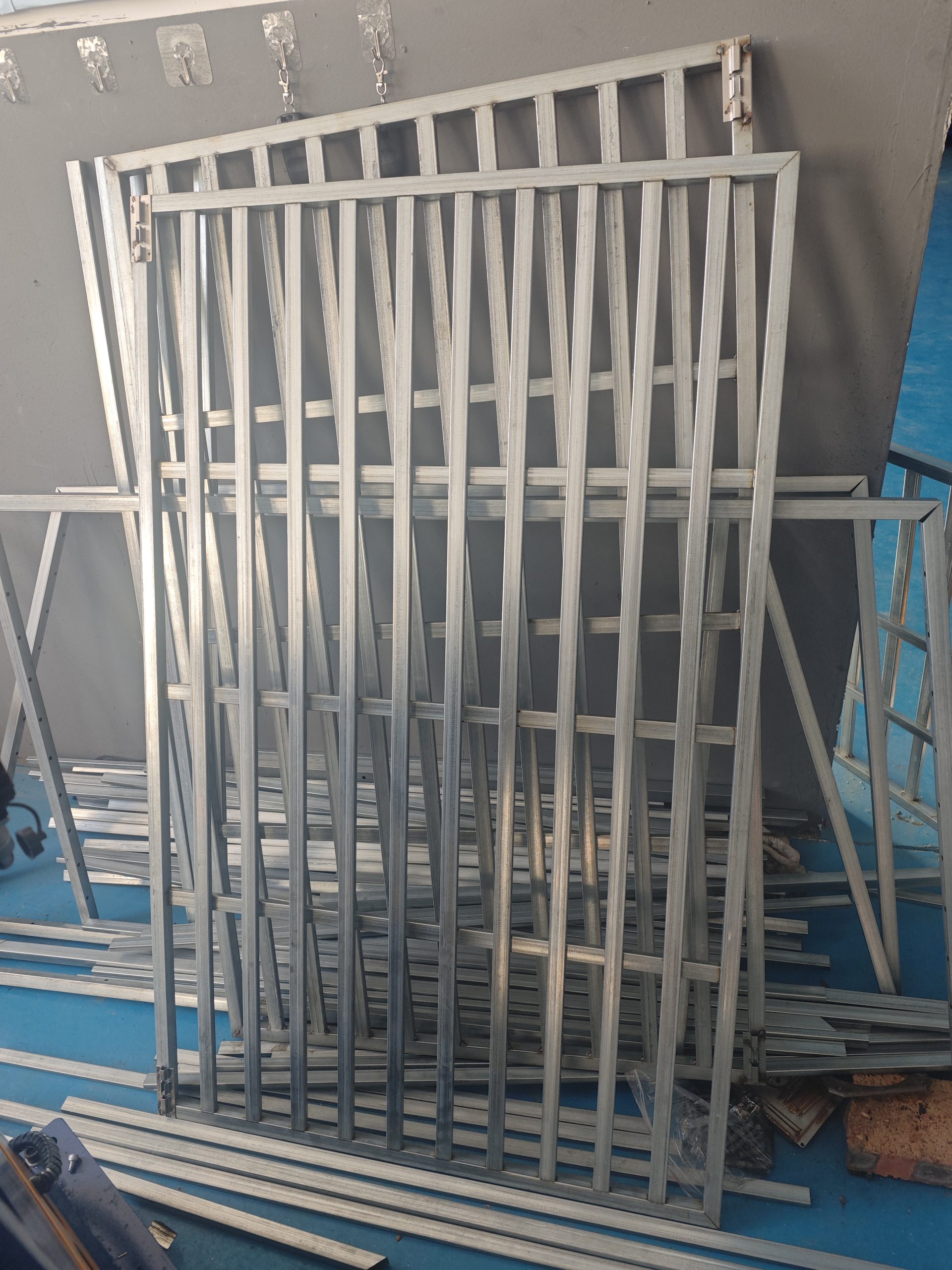

Finished welded iron cage frame
Why Choose ZS Laser
ZS Laser is more than a laser equipment manufacturer — we are your strategic partner for intelligent manufacturing transformation.
We offer:
Free sample welding tests and process evaluation
Customized fixture and automation design services
1-year full machine warranty and 2-year core component warranty
Extensive experience in robotic welding and laser cutting integration
Whether you manufacture metal cages, furniture frames, doors and windows, or tubular structures, ZS Laser can provide you with stable, efficient, and intelligent welding automation solutions tailored to your needs.
This project demonstrates the tremendous potential of laser automation technology in traditional manufacturing.
By integrating the laser tube cutting machine with a robotic laser welding system, the customer successfully transitioned from manual welding to a fully intelligent, automated production model.
ZS Laser will continue to deliver high-precision, high-efficiency laser automation solutions to manufacturing enterprises worldwide — helping them move toward the new era of smart manufacturing.
Contact us today to get your customized laser welding automation solution!
Video of robots welding iron cage frames
