CNC Laser Welding Machine Price: Why Do Prices Vary So Much?

When searching for a CNC laser welding machine, you may find surprisingly large differences in price.Two machines may appear almost identical on paper:

• 2000W laser
• Similar XYZ working area
• Similar welding head
• Similar rotary axis
• Similar machine appearance

Yet the quotations can be significantly different.

Why?

The reason is that the price of a CNC laser welding machine is determined by much more than its laser power and working size.Many of the components that have the greatest impact on machine cost are hidden inside the machine. The quality of the motion system, control system, laser source configuration, electrical components, rotary axis, machine structure, and other components can make a substantial difference to the final price.

Therefore, comparing CNC laser welding machine prices only by checking the laser power and working area can be misleading.A better approach is to understand what is actually inside the machine.

What Determines the Price of a CNC Laser Welding Machine?

The cost of a CNC laser welding machine can be affected by many factors, including:

• XYZ working travel
• Ball screws and motion components
• Linear guides
• Laser head movement system
• Pneumatic cylinders
• CNC control system
• Laser source and laser source model
• Rotary axis
• Reducer and transmission system
• Electrical components
• Machine frame
• Working table
• Welding fixtures
• Cooling system
• Wire feeder
• Automation configuration

Some differences are easy to see.Others are almost impossible to identify from photographs.This is why two CNC laser welding machines with apparently similar specifications can have very different prices.

1. XYZ Working Travel: Larger Does Not Simply Mean Better

The XYZ travel of a CNC laser welding machine determines the size and range of workpieces that the machine can accommodate.For example, a machine may be configured with different working areas such as:

• 500 × 500 mm
• 1000 × 1000 mm
• 1500 × 1000 mm
• 2000 × 1000 mm
• Larger customized dimensions

Naturally, a larger machine generally requires more material and a stronger motion structure.However, working area alone does not explain the entire price difference.A large CNC machine must maintain sufficient rigidity and positioning stability across the entire working range.As the travel increases, manufacturers may need to consider:

• Longer guide rails
• Longer ball screws
• Larger structural components
• Higher mechanical rigidity
• Better support structures
• More powerful drive systems

Therefore, when comparing two machines with large differences in XYZ travel, it is important to examine how the motion system is constructed rather than simply comparing the numbers.

2. Ball Screws: An Important Cost Hidden Inside the Machine

The motion system is one of the areas where significant differences can exist between CNC laser welding machines.Ball screws are commonly used to convert motor rotation into precise linear movement.They are often enclosed inside the machine structure, so buyers may not be able to see them after the machine has been assembled.However, not all ball screws are the same.Differences can include:

• Diameter
• Length
• Precision
• Manufacturing quality
• Load capacity
• Surface treatment
• Bearing configuration
• Matching components

A larger or higher-quality ball screw generally requires more material and manufacturing cost.For example, a supplier may quote a machine with a particular XYZ travel, but use relatively lightweight motion components to reduce cost.Another manufacturer may use larger and more robust motion components to improve rigidity and long-term stability.From the outside, the two machines may look very similar.Internally, however, their mechanical systems can be very different.

This is one reason why the cheapest quotation is not necessarily the lowest-cost machine in the long term.

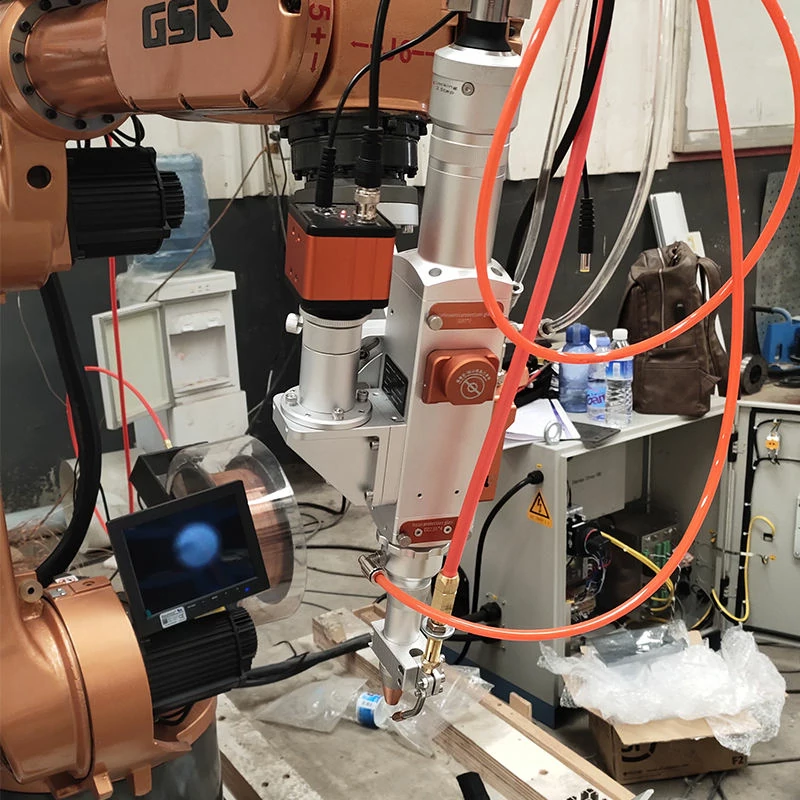

3. Laser Head Movement: The Motion Mechanism Also Matters

The laser welding head must move accurately and consistently during CNC welding.Depending on the machine design, pneumatic cylinders and other mechanical components may be used for functions such as:

• Laser head positioning
• Vertical movement
• Clamping
• Auxiliary movement
• Workpiece positioning

The number and quality of pneumatic components can therefore affect machine cost.

For example, one machine may use a simple pneumatic configuration, while another may use multiple cylinders with better-quality valves, guides, fittings, and control components.The difference may not be obvious from the machine’s exterior.However, component quality can affect:

• Movement stability
• Repeatability
• Response speed
• Service life
• Maintenance requirements

This is particularly important for machines used for repetitive production.

4. CNC Control System: One of the Most Overlooked Differences

The control system is another major factor affecting CNC laser welding machine price.A CNC system is not simply a screen attached to the machine.It determines how the operator interacts with the machine and how the motion system executes the programmed welding process.There can be significant differences between:

• Older and newer control systems
• Different manufacturers
• Different software versions
• Different hardware platforms
• Different motion-control technologies

A machine using an older-generation control system may still be able to perform the basic functions.However, the operating experience can be very different from a modern system.It is somewhat like comparing an old computer from several decades ago with a modern computer.Both may be able to perform basic tasks, but the difference in:

• Processing speed
• Interface
• Software response
• Ease of operation
• Stability
• User experience

can be substantial.For a CNC laser welding machine, the control system also affects how easily operators can:

• Create welding programs
• Set welding paths
• Adjust parameters
• Control axes
• Save programs
• Repeat production jobs

Therefore, when comparing prices, buyers should ask which control system and which version are actually included.Simply seeing the word “CNC control” on a quotation is not enough.

5. Laser Source: The Same Power Does Not Always Mean the Same Configuration

Laser power is one of the first specifications buyers usually check.For example:2000W fiber laserBut this number alone does not tell the whole story.Even within the same laser-source brand, there may be multiple models with the same rated power.For example, a manufacturer may offer different 2000W configurations with differences in:

• Laser architecture
• Performance characteristics
• Efficiency
• Cooling requirements
• Stability
• Beam characteristics
• Intended application
• Generation or product series

Therefore, two machines can both be advertised as using a 2000W laser source from the same brand, while the actual laser-source models are different.This is an area where buyers without technical experience may find it difficult to identify the difference.A professional laser equipment manufacturer should be able to explain:

• Exact laser-source model
• Laser-source generation
• Configuration
• Application suitability
• Expected operating conditions

The laser source is one of the most important components of the machine, so it should not be compared only by brand and wattage.

6. Rotary Axis: More Than Just “With or Without Rotary”

A rotary axis can greatly expand the applications of a CNC laser welding machine.It can be used for:

• Pipes
• Cylindrical components
• Round tanks
• Flanges
• Circular components
• Rotational welding

However, a quotation stating “rotary axis included” does not provide enough information.The rotary system itself can vary significantly.Important factors include:

• Maximum load
• Chuck size
• Motor
• Transmission system
• Reducer
• Rotation accuracy
• Rotation speed
• Mechanical rigidity

The reducer is particularly important for applications requiring stable and controlled rotary movement.A basic rotary system may be suitable for relatively light workpieces.Heavy workpieces may require a stronger transmission and higher load capacity.Therefore, two CNC laser welding machines may both include a rotary axis while having very different rotary-system costs and capabilities.

7. Electrical Components Also Affect Machine Cost

Electrical components are another area where suppliers can reduce or increase machine cost.A CNC laser welding machine may contain:

• Circuit breakers
• Contactors
• Relays
• Power supplies
• Electrical terminals
• Control components
• Cables
• Sensors
• Switches

The quality and brand of these components can affect:

• Electrical reliability
• Service life
• Maintenance
• Availability of replacement parts
• Overall machine stability

Using reliable electrical components may increase the initial manufacturing cost.However, it can also make maintenance and troubleshooting easier over the machine’s operating life.This is one of the reasons why the electrical cabinet should not be ignored when comparing two machines.

8. Working Table Quality Matters More Than It Looks

The working table supports the workpiece and fixtures during welding.For CNC laser welding, the table should provide sufficient:

• Rigidity
• Flatness
• Load capacity
• Positioning stability

A lightweight table may be sufficient for small workpieces.For heavier components, however, the machine structure and table must be designed to handle the load without excessive deformation.A high-quality machine may use a more robust structure and heavier working table.Again, this is something that may not be obvious when comparing photographs of different machines.

9. Machine Frame and Mechanical Structure

The machine frame is the foundation of the entire system.A CNC laser welding machine needs to maintain mechanical stability while the axes move and the laser performs welding.Important considerations include:

• Frame thickness
• Structural design
• Welding quality
• Stress relief
• Machine rigidity
• Axis support
• Overall mechanical stability

For larger machines, structural design becomes increasingly important.Simply making the machine longer or wider does not guarantee good performance.A large working area combined with an insufficiently rigid structure can affect positioning accuracy and long-term stability.This is why large-format CNC laser welding machines often require more engineering work than standard machines.

10. Why Large CNC Laser Welding Machines Are More Difficult to Build

When customers request a customized large-format CNC laser welding machine, they may focus mainly on the working area.For example:”I need a CNC laser welder with a 3000 × 1500 mm working area.”But increasing the working area creates a series of additional engineering requirements.The manufacturer may need to reconsider:

• Frame structure
• Guide rails
• Ball screws
• Drive motors
• Axis support
• Machine rigidity
• Cable management
• Welding-head movement
• Positioning accuracy

Longer travel can also increase the possibility of mechanical deflection and vibration if the machine is not designed properly.Therefore, a large customized CNC laser welding machine should not simply be treated as a standard machine with a larger table.It requires appropriate mechanical design.

So Why Two 2000W CNC Laser Welding Machines Can Have Very Different Prices

Consider two machines with the following specifications:

Machine A

• 2000W laser
• Similar XYZ travel
• CNC control
• Rotary axis
• Fiber laser welding head

Machine B

• 2000W laser
• Similar XYZ travel
• CNC control
• Rotary axis
• Fiber laser welding head

On paper, they look almost identical.But Machine B may use:

• Higher-quality ball screws
• Larger motion components
• Better linear guides
• New-generation CNC control
• Higher-quality electrical components
• Better rotary transmission
• Higher-load rotary axis
• More rigid machine frame
• Better working table
• Higher-grade pneumatic components

The result can be a significant difference in manufacturing cost.This is why a buyer should avoid comparing CNC laser welding machines only by a simple specification list.The real difference may be inside the machine.

Cheap CNC Laser Welding Machine vs High-Quality CNC Laser Welding Machine

A low-price CNC laser welding machine is not necessarily unusable.The question is what level of performance and reliability the buyer actually needs.A lower-cost machine may reduce expenses through choices such as:

• Smaller mechanical components
• Simpler control systems
• Lower-cost electrical components
• Basic rotary systems
• Lower-cost pneumatic components
• Simpler machine structures
• Older-generation hardware

For occasional use, this may be acceptable.For continuous industrial production, however, the priorities can be different.Manufacturers may care more about:

• Repeatability
• Stability
• Machine life
• Maintenance
• Production efficiency
• Operator experience
• Spare parts
• Long-term reliability

Therefore, the cheapest machine is not always the most economical choice.

Why Professional Manufacturing Experience Matters

Many machine specifications look simple on paper.But selecting and matching the components correctly requires practical manufacturing experience.For example, simply knowing that a machine needs a “2000W laser” does not explain:

• Which 2000W model is appropriate
• Which motion components should be selected
• What size ball screw is appropriate
• How the CNC system should control the axes
• What rotary configuration is suitable
• How much load the machine structure can handle
• How the components should work together

A CNC laser welding machine is a complete mechanical, optical, electrical, and software system.The quality of the final machine depends on how these systems are designed and integrated.

ZS Laser: We Focus on Quality, Not the Lowest Price

At ZS Laser, we understand that a CNC laser welding machine should not be evaluated only by its laser power or external appearance.We focus on the complete machine configuration, including the motion system, CNC control, laser source, rotary axis, electrical components, machine structure, working table, and other critical components.

We do not position our machines as the cheapest option on the market.Instead, we focus on reliable components, practical machine design, solid manufacturing, and consistent performance.For customers who need a customized CNC laser welding machine, we can develop the machine according to:

• Workpiece dimensions
• Welding path
• Material
• Welding thickness
• XYZ travel
• Rotary requirements
• Load capacity
• Production volume
• Automation requirements

The goal is not simply to build a machine with attractive specifications.The goal is to build a CNC laser welding machine that can provide reliable performance in real production.

Therefore, if you need a CNC laser welding machine, tell us the product you want to weld, its material, size, and thickness, and we will recommend the most suitable configuration for you, without cutting corners on equipment. Contact us now to get your customized CNC laser welding solution.
